Industry
- Battery
[ When using CameraLink cameras ]
1. Requiring eight(8) cameras for Align and Visual inspection.
- CameraLink Base, Low tact time
- CameraLink Full, Needed additional PC + Frame grabber
2. Requiring long-distance data transmission due to size and the structure of the equipment.
- Needed additional Repeater and cable to extend CameraLink transmission distance
Solution
[ When using CREVIS CXP cameras : (More useful when using multiple cameras) ]
1. Four(4) cameras per Frame grabber – Free PCIE Slot / No additional PC required
2. CXP 1ch = Similar level of bandwidth to CameraLink Full (6.25Gbps)
3. Image data transmission over long distance (30m)
Results
[ Cost Reduction ]
1. Reduced the number of Frame grabber (CXP : 2pcs, CameraLink : Base 4pcs, Full 8pcs)
2. Cable: Lower CXP unit price than CameraLink cable
3. PC : No need additional PC
[ Ease of Installation ]
1. CXP Cable : Provides video, communication, control, and power over a single coaxial cable
2. Available to set up without separate Camfile

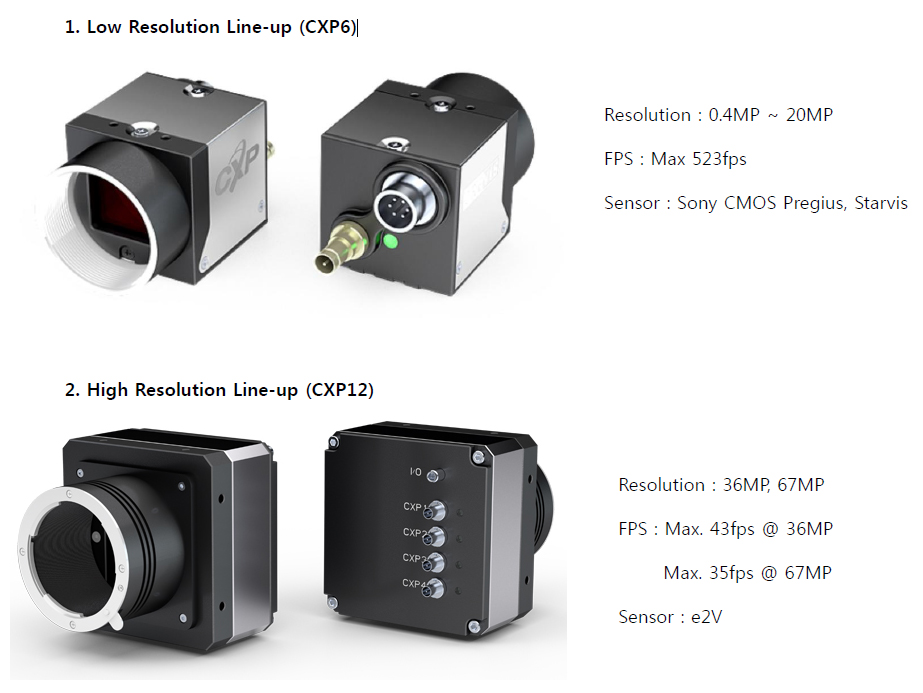

CREVIS CXP(CoaXPress) Camera
-
MX-A040K-523
CoaXPress, 720 x 540, Color, 523fps,
Sony CMOS Pregius IMX287 -
MX-A040M-523
CoaXPress, 720 x 540, Mono, 523fps,
Sony CMOS Pregius IMX287 -
MX-A160K-276
CoaXPress, 1440 x 1080, Color, 276fps,
Sony CMOS Pregius IMX273 -
MX-A160M-276
CoaXPress, 1440 x 1080, Mono, 276fps,
Sony CMOS Pregius IMX273 -
MX-A201L-26
CoaXPress, 5488 x 3672, Color, 26fps,
Sony CMOS Starvis IMX183 -
MX-A201R-26
CoaXPress, 5488 x 3672, Mono, 26fps,
Sony CMOS Starvis IMX183 -
MX-A121L-43
CoaXPress, 4016 x 3036, Color, 43fps,
Sony CMOS Starvis IMX226 -
MX-A121R-43
CoaXPress, 4016 x 3036, Mono, 43fps,
Sony CMOS Starvis IMX226 -
MX-A121K-48
CoaXPress, 4096 x 3000, Color, 48fps,
Sony CMOS Pregius IMX253 -
MX-A121M-48
CoaXPress, 4096 x 3000, Mono, 48fps,
Sony CMOS Pregius IMX253 -
MX-A121K-23
CoaXPress, 4096 x 3000, Color, 23fps,
Sony CMOS Pregius IMX304 -
MX-A121M-23
CoaXPress, 4096 x 3000, Mono, 23fps,
Sony CMOS Pregius IMX304 -
MX-A890K-66
CoaXPress, 4096 x 2176, Color, 66fps,
Sony CMOS Pregius IMX255 -
MX-A890M-66
CoaXPress, 4096 x 2176, Mono, 66fps,
Sony CMOS Pregius IMX255 -
MX-A500M-116
CoaXPress, 2464 x 2056, Mono, 116fps,
Sony CMOS Pregius IMX250 -
MX-A500K-116
CoaXPress, 2464 x 2056, Color, 116fps,
Sony CMOS Pregius IMX250 -
MX-A320K-184
CoaXPress, 2064 x 1544, Color, 184fps,
Sony CMOS Pregius IMX252 -
MX-A320M-184
CoaXPress, 2064 x 1544, Mono, 184fps,
Sony CMOS Pregius IMX252
